Unraveling the Mysteries of Transistors

Welcome aboard on a journey through the electrifying world of transistors! Whether you’re a curious novice or a seasoned enthusiast, buckle up as we embark on a hands-on exploration of these remarkable electronic components.

Transistors: The Basics

Picture this: a component that functions as an electronic switch, seamlessly toggling current flow on and off without any moving parts. That’s the magic of a transistor! Think of it as a relay’s sleek, modern cousin, offering versatility and efficiency in a compact package.

At the heart of our transistor adventure are two main types: the venerable Bipolar Junction Transistor (BJT) and its contemporary counterpart, the Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET).

Understanding the BJT:

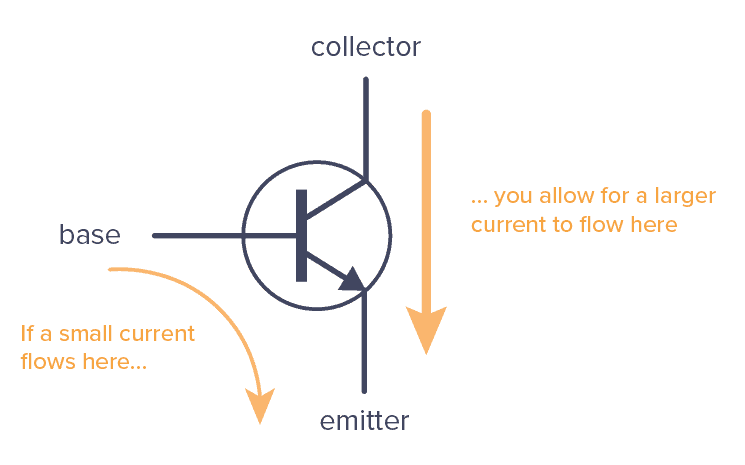

Let’s kick off our exploration with the classic NPN transistor. Armed with three distinctive legs – the base, collector, and emitter – it holds the key to controlling current flow in your circuits.

When powered on, current surges from the collector to the emitter, lighting up pathways and energizing components. Conversely, in its off state, the transistor acts as a vigilant gatekeeper, halting the flow of electrons in their tracks.

But how do we coax this silent sentinel into action? Enter the base-to-emitter connection, akin to a diode’s forward voltage grab. With a subtle nudge of around 0.7 volts, courtesy of a judiciously placed resistor, we awaken the transistor from its slumber, ushering in a new era of conductivity.

The MOSFET : A Modern Twist

But wait, there’s more! Say hello to the MOSFET transistor, a sleek and sophisticated sibling to the BJT. With its gate, source, and drain, it promises a fresh perspective on current control.

Unlike its BJT brethren, the MOSFET dances to a different tune, with gate-to-source voltage dictating its flow of electrons. To unlock its full potential, a voltage exceeding the threshold beckons, ushering forth a symphony of conductivity.

Crafting Circuits:

Armed with newfound knowledge, let’s embark on a circuit-crafting escapade! From LED illuminations to speaker symphonies, the possibilities are endless. With a dash of creativity and a sprinkle of ingenuity, transistors become our faithful allies in the realm of electronics.

Conclusion:

As our journey draws to a close, let us reflect on the awe-inspiring capabilities of transistors. From humble switches to potent amplifiers, these unassuming components shape the very fabric of modern technology.

So, dear reader, embrace the power of transistors, for they are the building blocks of innovation and the gateway to a world limited only by your imagination.

Keep experimenting, keep creating, and let the sparks of curiosity ignite your next electrifying adventure!
